PRODUCTS
Exterior Heat Insulation
| Keeprecision Product Description Keeprecision Keeprecision |
Technical Data
Properties | Test Standard | Unit | Value |
Density | DIN 53479 | g/cm3 | 1.85 |
Flexural Strength at 23°C | ISO 178 | N/mm2 | 130 |
Compressive Strength at 23°C at 200°C | ISO 604 | N/mm2 | 300 110 |
Coeff. of Thermal Expansion | DIN 53752 | 10-6 K-1 | 18 |
Thermal Conductivity | DIN 52612 | W/mK | 0.12 |
Continuous Use Temperature | - | °C | 200 |
Maximum Use Temperature | - | °C | 210 |
Water Absorption after 24 h at 23°C | DIN 53495 | % | 0.15 |
Availability
Keeprecision

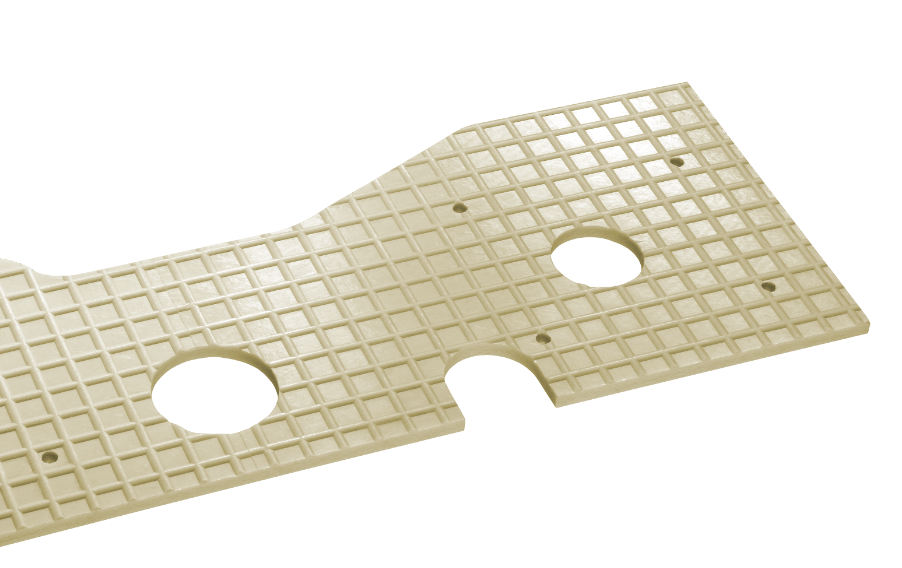

-200-WHT can be delivered as sheet cut-offs and finished parts.
- Max. sheet dimension 800 x 800 mm
- Thickness 5 /8/10mm
Exterior Thermal Insulation
| All information in this data sheet is given in good faith and represents our latest knowledge. The values above are typical test results from short time tests and should not be taken as guaranteed, for specifications or primary selection of materials.
|
Keeprecision-200-WHT is a registered trade-mark from Keeprecision thermal Insulation Materials Co., Ltd.
Denotation
Brand Name — Long-term Application Temperature — Color
Ex. Keeprecision - 200 - GN refers to Keeprecision
green thermal insulation materials with the application
temperature 200°C.
Note: There is an additional letter "T" in the color term to distinguish between products of
the same long-term application temperature and color, but different composition.
Long-term application temperature(°C):110,120, 180, 200, 210, 220, 250, 280, 350,
500, 600, 700, 800,1000,1100,1200
Capitals to denote the color: WH(white) O YE(yellow) O GN(green) O BL(black)
O BU(blue) O SL(silver) O GR (gray) O BR(brown) O GD(gold) O RD(red)
Keeprecision Thickness Tolerance
Dimension (mm) | Thickness Tolerance (mm) |
±0.05mm | |
1000*1000 range | ±0.1mm |
800*1000 range | ±0.01～±0.03mm (particular precision needs grinding processing, which should be discussed according to the actual size) |
Keeprecision Processing and Delivery time
Are you still worried about the processing problems of thermal insulation boards, such as the floating dust that may affect equipment performance and human health?
Are you still worried about bad quality of the finished thermal insulation boards,such as holes, small cracks,dimension tolerance, delamination, etc.?
Now we provide customers with machining service, The delivery time is as follows：
Product Type | Normal Delivery Time (working days) |
Unmachined | 3 working days |
Machined | 5-7 working days (time negotiated for special purchase quantity) |
Remarks：
● Above is the processing time. For shipping time, please refer to Freight Time MAP portal.
● Please provide CAD drawings as far as possible so that we can speed up the delivery.
● If expeited delivery is required, please use our expeited shipping service. For service details, please refer to Expeited Shipment portal.
