Application industry
Automotive Welding

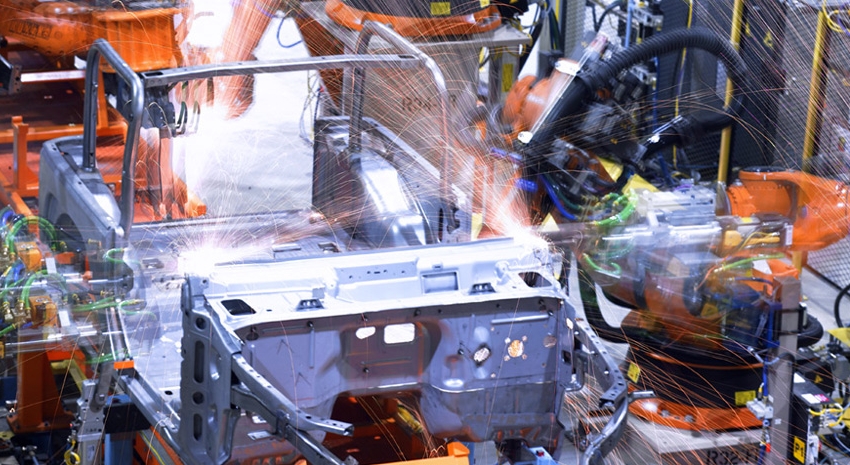

Automotive welding is a demanding technology in terms of processing conditions. Keeprecision has rich experience in providing proper thermal insulation for automotive welding based on our continuous exploration in this field. For example, under the pressure of 600N/mm, thermoset plastics in insulated welding tools can withstand a temperature as high as 200°C without plastic flowing. Keeprecision produces thermally electrical stable materials with customized geometry to satisfy various application conditions.
>> Our technicians and engineers will be happy to advise you.
| |
Automotive Welding(Click the product name to know more about the product details)
-
- Brand name
- Long-term Temperature
- Short-term Temperature
- Thermal Conductivity
- Compressive Strength
- Flexural Strength
- Product type
- Keeprecision-110-BR
- 110℃
- 110℃
- 0.20W/mK
- 320N/mm2
- 100N/mm2
- Standard type
- Keeprecision-120-BL
- 120℃
- 120℃
- 0.20W/mK
- 300N/mm2
- 135N/mm2
- Durable type
- Keeprecision-200-BU
- 200℃
- 210℃
- 0.18W/mK
- 330N/mm2
- 140N/mm2
- Standard type
- Keeprecision-200-GN
- 210℃
- 220℃
- 0.19W/mK
- 580N/mm2
- 380N/mm2
- High pressure type
- Keeprecision-200-GR
- 200℃
- 210℃
- 0.18W/mK
- 330N/mm2
- 140N/mm2
- Economic type
- Keeprecision-200-YE
- 200℃
- 210℃
- 0.19W/mK
- 600N/mm2
- 380N/mm2
- High pressure type
- Keeprecision-210-GN
- 210℃
- 210℃
- 0.17W/mK
- 340N/mm2
- 150N/mm2
- Economic type
- Keeprecision-220-BR
- 230℃
- 250℃
- 0.21W/mK
- 600N/mm2
- 500N/mm2
- High pressure type
- Keeprecision-220-YE
- 220℃
- 230℃
- 0.22W/mK
- 350N/mm2
- 530N/mm2
- Durable type
- Keeprecision-250-BL
- 250℃
- 260℃
- 0.23W/mK
- 560N/mm2
- 400N/mm2
- Durable type
- Keeprecision-250-BR
- 250℃
- 260℃
- 0.22W/mK
- 600N/mm2
- 360N/mm2
- High pressure type
- Keeprecision-250-GN
- 250℃
- 260℃
- 0.22W/mK
- 660N/mm2
- 760N/mm2
- Bending type
- Keeprecision-250-RD
- 250℃
- 260℃
- 0.22W/mK
- 570N/mm2
- 410N/mm2
- Durable type
- Keeprecision-280-GN
- 280℃
- 290℃
- 0.18W/mK
- 580N/mm2
- 400N/mm2
- High temperature type
- Keeprecision-280-WH
- 280℃
- 290℃
- 0.20W/mK
- 400N/mm2
- 120N/mm2
- Energy-saving type
- Keeprecision-310-BL
- 310℃
- 350℃
- 0.22W/mK
- 360N/mm2
- 380N/mm2
- High temperature type
- Keeprecision-600-SL
- 600℃
- 600℃
- 0.12W/mK
- 400N/mm2
- 200N/mm2
- High pressure type
- Keeprecision-800-GD
- 800℃
- 800℃
- 0.12W/mK
- 300N/mm2
- 140N/mm2
- High pressure type
- Keeprecision-1100-WH
- 1100℃
- 1100℃
- 0.10W/mK
- 16N/mm2
- 7N/mm2
- High temperature type
- Keeprecision-1300-GR
- 1300℃
- 1300℃
- 21.00W/mK
- 2550N/mm2
- 730N/mm2
- Ceramic type
